5000 Liquid Level Controller

  • Maximum Sensor Operating Pressure: 3,750 PSIG (259 BARG)
  • End Connections: Raised Face / Ring Type Joint / MNPT
  • Minimum Specific Gravity: 0.1
  • Zero Bleed in Steady State
  • Output Signal Range: 3-15 PSIG (0.21-1.03 BARG) or 6-30 PSIG (0.41-2.07 BARG)
  • Operative Ambient Temperature Limitations: -20°F to 400°F (-29°C to 204°C)
More Details

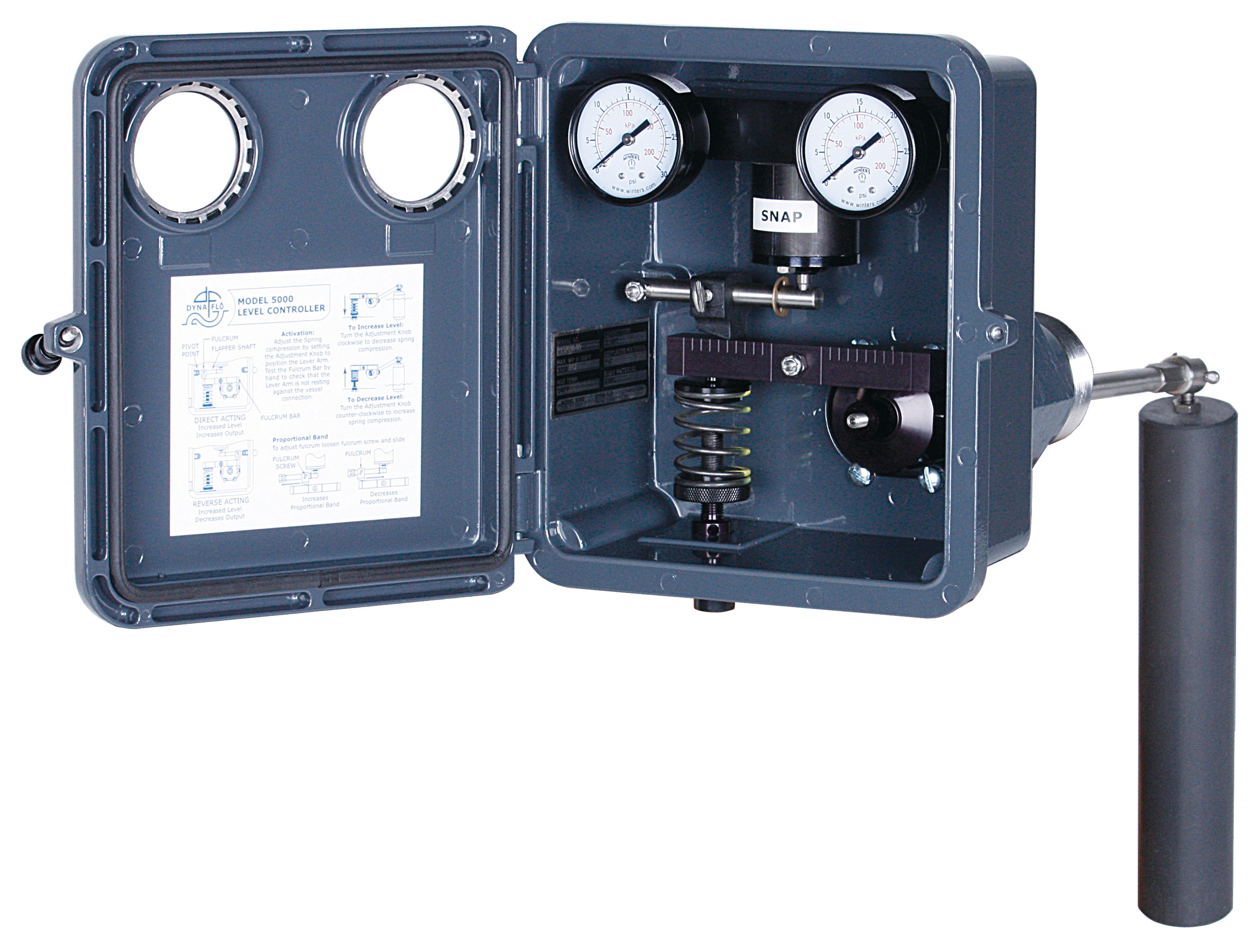

The 5000 level controller utilizes an innovative relay manifold design providing easy maintenance and improved safety. The design of the 5000 allows for operational consistency through high and low-pressure applications, with special access to the displacer arm seal that can be serviced without disrupting the vessel connection.

Overview

5000 Liquid Level Controller

MODELPILOT TYPEPILOT ACTIONTEMPERATURE LIMITS




5000PNEUMATIC (STANDARD)
SNAP ACTING-40°F to 400°F
(-40°C to 204°C)
THROTTLING




5000E

ELECTRIC (OPTIONAL)
SPDT
(EXPLOSION PROOF)
-40°F to 160°F
(-40°C to 71°C)
DPDT
(EXPLOSION PROOF)

Product Specifications

Available End ConnectionsOpen arrow
END CONNECTION MAXIMUM PRESSURE RATING AT 38°F (100°C)
MNPT 3,750 PSIG (259 BARG)
150 RF 285 PSIG (19.7 BARG)
300 RF 740 PSIG (51.0 BARG)
600 RF 1,480 PSIG (102 BARG)
600 RTJ 1,480 PSIG (102 BARG)
900 RF 2,220 PSIG (153 BARG)
900 RTJ 2,220 PSIG (153 BARG)
1500 RF 3,750 PSIG (259 BARG)
1500 RTJ 3,750 PSIG (259 BARG)

5000 Series Level Controller Documentation

5000 Displacer Installation Instructions
Dynaflo, DynaFlo, Instrumentation, Manuals & Software
5000 Instruction Manual
Dynaflo, DynaFlo, Instrumentation, Manuals & Software
5000 Sales Bulletin
Brochures, DynaFlo, Dynaflo, Instrumentation
Refer to our FloSpec software for product selection, sizing and ordering

Refer to our FloSpec software for product selection, sizing and ordering
